Reference Concept • Pre-Operational Validation Capability

Centrifugal Water Shield Segment Demonstration (CWSSD)

A requirements-style definition of a minimal, repeatable on-orbit demonstration that validates fill, containment, and spin-up behavior of large water-based radiation shielding systems under relevant microgravity and artificial-gravity conditions.

What this page is

This is a neutral definition of a minimal “CWSSD-class” investigation: a compact, free-flying capability for measuring the dynamic behavior of large fluid masses during in-orbit fill and controlled rotation. It is not a product announcement, not a solicitation, and not a claim of planned development.

Fluid dynamics, not shielding chemistry Flight-validated parameters, not inference Mass-scaling risk reduction Repeatable test recipe

Core idea: before large orbital habitats or depots depend on water mass for shielding, storage, or artificial gravity, the fill and spin-up behavior of that mass should be measured directly under flight conditions that cannot be reproduced on the ground.

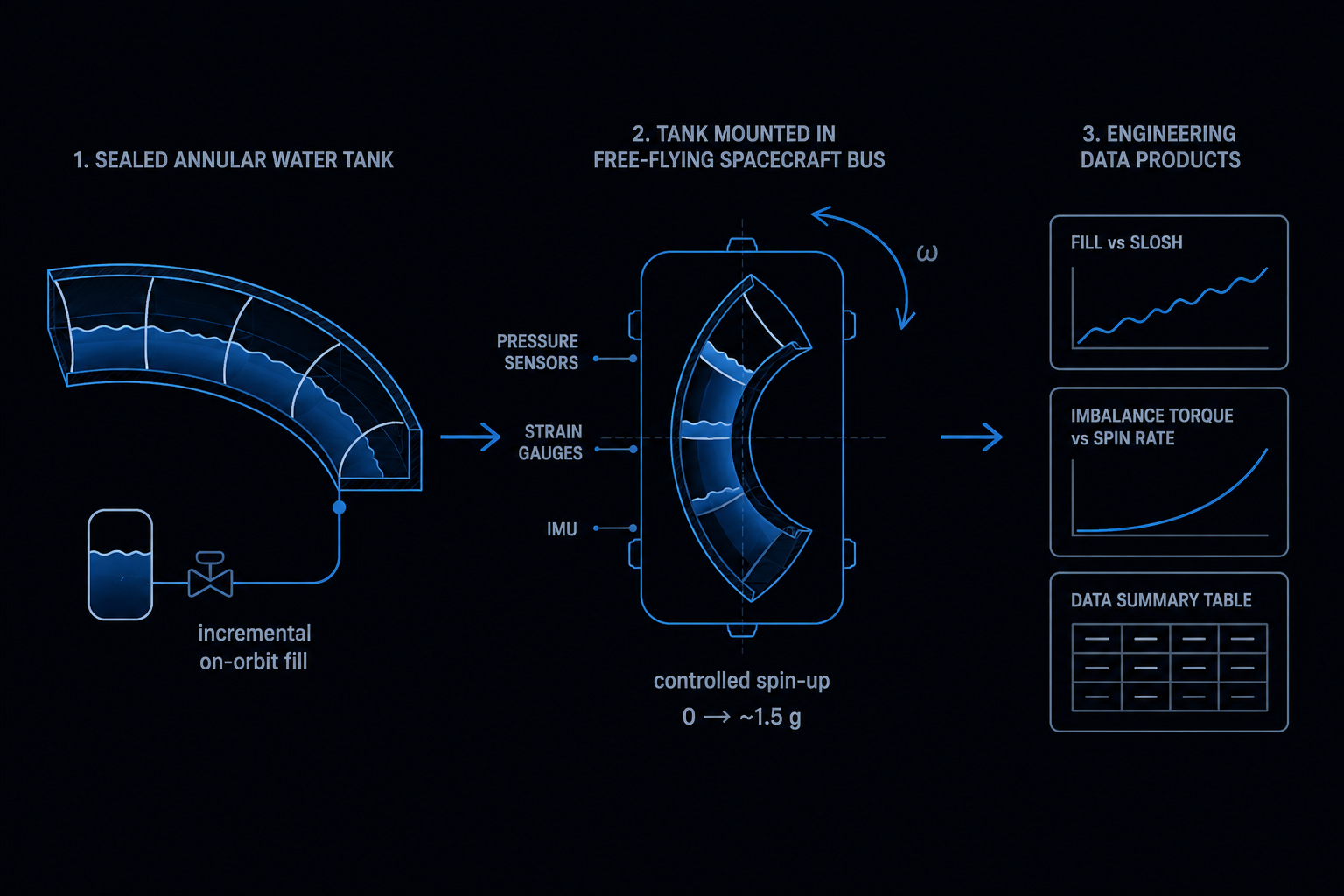

Centrifugal Water Shield Segment Demonstration (CWSSD) block diagram: annular water tank and incremental fill, to spin platform, to engineering data products.

Why this capability is needed

As orbital architectures move from one-off demonstrations toward large-mass infrastructure, a practical operational gap becomes more consequential: quantified fluid behavior at the scale and configuration these systems actually use.

Large-mass fluid shielding introduces mass asymmetry, slosh dynamics, gas entrapment, and spin-up resonance that ground testing cannot fully replicate.
“The fluid will settle under spin” is not a substitute for measured redistribution across the surface-tension-to-acceleration transition.
Partial-fill behavior differs materially from full-fill behavior, and operational fill is performed on orbit rather than pre-loaded on the ground.

Scope of application

CWSSD-class characterization should precede or accompany:

Large orbital habitats with water-based radiation shielding
Propellant depots and in-space fluid storage
Radiation-shielded deep-space vehicles
Artificial-gravity systems relying on rotating fluid mass
In-space life-support water storage at scale

CWSSD-class characterization complements structural and radiation payloads; it is focused on operational fluid mechanics rather than shielding-material performance.

Measurement objectives

Primary (minimum) objectives

Characterize incremental fill stability in microgravity, including gas entrapment and surface topology
Measure water redistribution through the surface-tension- to acceleration-dominated transition
Quantify slosh response and suppression as a function of fill fraction and spin rate
Measure induced imbalance torques and structural loads during controlled spin-up

Recommended (mission-dependent)

Demonstrate rebalancing strategies using internal flow routing during non-steady operations
Capture disturbance recovery following spin-rate modulation, attitude changes, and partial drain/refill
Validate reversibility through controlled de-spin and drain

Success criterion: outputs are directly usable by habitat, depot, and artificial-gravity designers (stability envelopes, response curves, scaling parameters), not only raw telemetry or qualitative descriptions.

Functional requirements (requirements-style)

ID	Function	Requirement
CWSSD-F-001	On-orbit fill	The system shall transfer water incrementally into the shielding tank in microgravity and measure fluid surface topology, gas migration, and structural load at each fill increment. Partial-fill Gas entrapment Surface geometry
CWSSD-F-002	Controlled spin-up	The system shall produce programmable rotation from zero to a defined artificial-gravity equivalent and measure water redistribution across the surface-tension-to-acceleration transition. Regime transition Redistribution
CWSSD-F-003	Slosh characterization	The system shall measure slosh response across fill fractions and spin rates and evaluate suppression performance of internal segmentation. Slosh curves Baffle performance
CWSSD-F-004	Imbalance & load sensing	The system shall measure induced imbalance torques and tank-wall structural loads throughout fill and spin-up operations. Mass asymmetry Load evolution
CWSSD-F-005 (recommended)	Disturbance recovery	The system should introduce controlled disturbances (spin-rate modulation, attitude change, drain/refill) and demonstrate rebalancing via internal flow routing. Controllability Fault tolerance
CWSSD-F-006	Reversibility	The system shall demonstrate controlled de-spin and drain to validate safe shutdown of the fluid system. Recoverability Safe shutdown
CWSSD-F-007	Time synchronization	The system shall timestamp all measurements and synchronize fluid, structural, and attitude data to support reconstruction of test conditions. Engineering traceability

Note: quantitative thresholds (water volume, spin rate, accuracies) are mission- and platform-dependent and should be set by the requirements of the target shielding or artificial-gravity system. A representative baseline uses a 50–150 L configurable annular volume and a 0 to ~1.5 g equivalent programmable spin range in low Earth orbit.

Conceptual device elements

Annular tank: sealed, instrumented curved annular segment (toroidal sector) geometry
Internal segmentation: curved, soft-cell-inspired baffles avoiding sharp corners, for slosh suppression
Fill system: onboard reservoir and metering for incremental on-orbit transfer
Spin platform: self-contained free-flying bus with programmable rotation and attitude stabilization
Sensor set (minimum): multi-point pressure, flow, tank-wall strain, IMU and torque, internal imaging, temperature
Optional: internal flow-routing for active rebalancing

Design bias: fill and manipulate water on orbit, rather than pre-filling on the ground, so the demonstration replicates operational conditions for large infrastructure rather than a launch-loaded approximation.

Minimal test recipe (single-mission class)

Baseline zero-g diagnostics — pressure response, gas distribution, sensor calibration (no rotation)
Incremental fill — controlled mass steps (e.g., 5–10 L), imaging surface topology and gas migration between steps
Low-g spin initiation (≤0.3 g) — observe the surface-tension- to acceleration-dominated transition
Progressive spin-up (0.3 g → 1.0 g) — multiple dwell points, imbalance and slosh measurement
Disturbance testing — spin-rate modulation, attitude change, drain/refill, rebalancing trials
De-spin and drain — final diagnostics, validate reversibility, passivate or deorbit

This recipe is intentionally compact: it prioritizes engineering-usable stability and scaling parameters over broad exploratory data collection.

Data products

CWSSD-class investigations should deliver a small set of standardized outputs suitable for habitat, depot, and artificial-gravity design:

Plots (minimum set)

Fill fraction vs surface topology / gas entrapment (per increment)
Spin rate vs slosh response (across fill fractions)
Imbalance torque and structural load vs spin rate

Tables (minimum set)

Test metadata: configuration, timestamps, instrument setup
Stability envelopes for fill/spin combinations
Derived scaling parameters and uncertainty bounds

Engineering usability requirement: a habitat or depot design team should be able to plug outputs into a model or spreadsheet without bespoke interpretation.

Where it fits in mission planning

Precursor step before committing to large water-based shielding, fluid storage, or rotating-fluid artificial-gravity architectures
Input to structural, attitude-control, and fill-system design for large-mass platforms
Complements radiation and structural payloads by addressing fluid-dynamic uncertainty
Improves design margins and reduces conservatism driven by unknown large-mass fluid behavior

Framing: as orbital infrastructure scales toward large fluid masses, measured fill and spin-up behavior becomes an enabling capability rather than an optional add-on.

Why a flight demonstration

The defining behaviors — partial-fill stability, the surface-tension-to-acceleration transition, and large-mass slosh under spin — depend on sustained microgravity and controlled rotation at a scale and duration unreachable in drop towers or parabolic flight.
Ground campaigns remain the appropriate precursor for instrument calibration, baffle-geometry screening, and modeling validation.
The flight demonstration addresses the regimes those campaigns cannot reach, producing flight-validated scaling data.

This sequencing keeps ground work as the front end of the investigation rather than something the flight is intended to replace.

Relationship to mission risk

Absence of CWSSD-class measurements prior to committing to large-mass fluid shielding or rotating-fluid systems constitutes a known engineering risk, including uncontrolled mass migration, spin-up resonance, persistent imbalance, and structural overload.

Because these measurements underpin the feasibility and certification of large human-rated platforms, the underlying capability and its data products should be operator-owned, auditable, and repeatable across missions.

CWSSD-class characterization reduces epistemic uncertainty; it does not eliminate all risk and does not replace disciplined operational constraints.

Standardization potential

Standardizing CWSSD-class investigations enables cross-configuration comparability and accumulation of empirical large-mass fluid datasets. Over time, this reduces the need to re-derive fill and spin-up behavior for each new platform and supports better-grounded design and operational margins.
